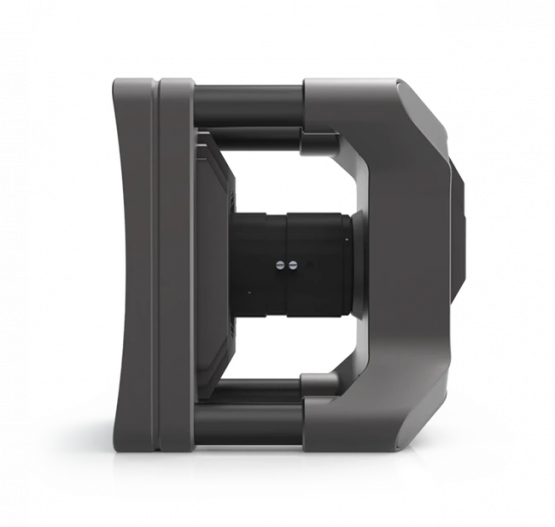

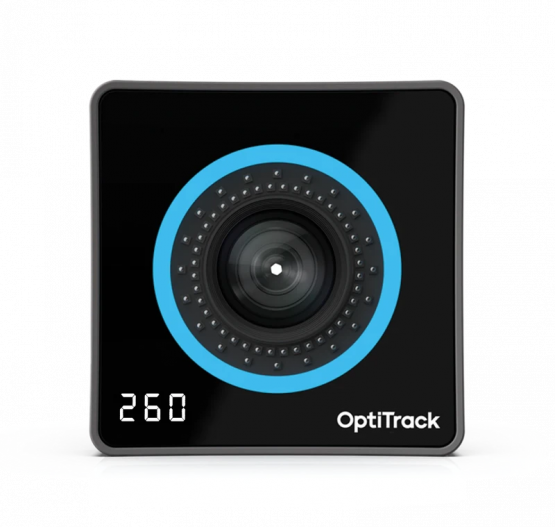

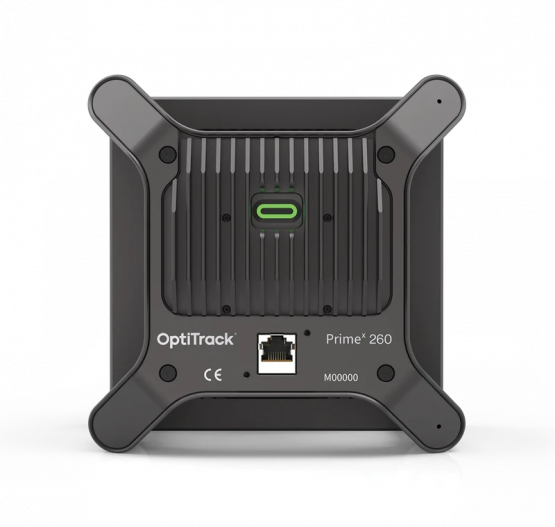

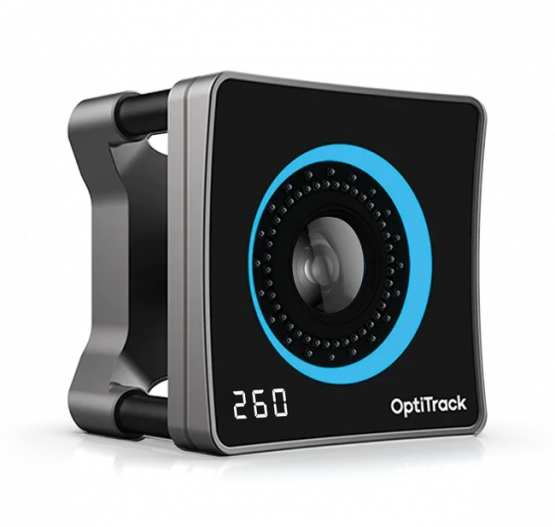

Prime X260
Our most accurate, highest resolution motion capture camera for large-volume tracking.
The new Primex 260 delivers 50-micron 3D accuracy—our tightest spec ever—paired with our highest resolution sensor and OptiTrack’s industry-leading range.
Long Range Performance
Primex 260 is engineered for extreme camera-to-marker range—enabling huge tracking volumes for training and simulation, robotics, and large stages. At long distances, its 26 MP imager delivers higher pixel density on every marker, improving stability when tracking smaller objects or dense multi-marker constellations across the far edges of your capture space.
Micron-level 3D Accuracy
An 8-camera PrimeX 260 system exhibited a mean displacement error of 0.037mm (± .025mm) across nine 100mm translation trials.
Our Highest-Resolution Camera
Puts more pixels on every marker—so you can track smaller markers, packed closer together, from farther away.
"Fast Glass" Lens Engineering
We custom design our own super low distortion, “fast glass” lenses for optimal marker tracking. The Primex260’s lenses feature a wide-band anti-reflective coating for greater light transmission, larger volumes, and more precision 3D data.
Choose the wider-view option. The standard Primex 260 offers a broad 57° x 57° Field of View (FOV). For wider volumes that demand elite accuracy, the Primex 260W is available with a 74° x 74° 8.9mm wide-view lens. The additional FOV lets users deploy fewer cameras to capture movement in wider areas.
On-Camera Status Indicator
Primex cameras can keep users informed with definable color LED indicator rings surrounding the lens. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.
New, higher output strobe. Ultra high power LEDs provide improved range for any given shutter setting. The world's longest range motion capture camera just got even better.
Powerful On-Board Image Processing
All OptiTrack cameras feature integrated image processing. The algorithms which identify markers and marker centers, and the sequence of data delivery are important steps to achieve both world leading accuracy and low latency.
Industry-Leading Precision
Our 3D precision is the best in the business, outperforming even the highest-resolution competition—which is why Activision selected OptiTrack to build the largest and most accurate performance capture stage in existence.
Track Anything and Everything
OptiTrack's foundation. Retroreflective passive markers, illuminated by the cameras themselves, deliver the sub-millimeter accuracy that has defined motion capture for decades. From character animation to biomechanics to elite sports analysis, marker-based tracking remains the gold standard for capturing complex human and object motion with absolute precision.
