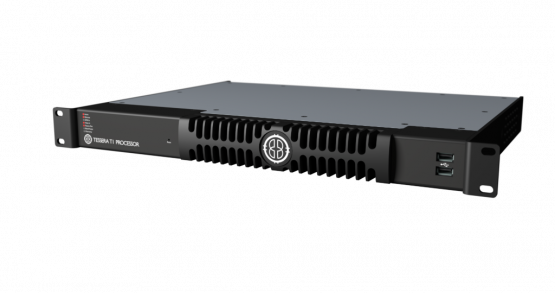

Brompton Tessera T1

LED Video Processor

Designed for Creativity

The Brompton Tessera T1 LED Processor is the best choice for smaller creative shows that don’t need to output a huge amount of pixels.  It offers you maximum flexibility over fixture layout and input processing – perfect for shows using LED video walls with coarser pitch panels and strips/tiles.

The Tessera T1’s DVI-D input can be scaled, clipped and colour adjusted to perfectly map the content to the fixtures.

Powerful Tessera Features:



Dark Magic

Improves the appearance of panels operating at less than their maximum brightness by reducing banding and increasing detail in dark areas.



OSCA

On-Screen Colour Adjustment (OSCA) enables a special user interface to appear on the LED screen itself, allowing for quick, easy module and seam selection.



Tessera Software

Brompton’s Tessera Management Software gives you full control over your Tessera System, with an array of powerful, easy-to-use features for an impeccable show every time.



Fixture Rotation and Sub-Fixture Mapping

Brompton Tessera Management Software makes setting up your LED fixtures easy, regardless of number, size or cabling order, offering increased flexibility and much greater creative control over fixtures of any pixel pitch.

You can place fixtures and sub-fixtures anywhere on the full HD canvas, and rotate them to any angle. The Tessera processing system uniquely supports multiple sub-fixtures from a single R2 receiver card, making mapping creative shows with LED strips and small tiles easier than ever.
DMX Control

For seamless integration with a lighting control system, the Tessera T1 LED processor offers live control via DMX or eDMX protocols (e.g. Art-Net).

You can configure your channels to control everything from colour settings to fixture group positioning to screen intensity. To make it even easier, the Tessera T1 comes with a number of pre-built profiles with commonly used controls so you can get to work straight away, or power users have the option to fully customise their profiles.



Low Latency Scaler

  • The Brompton Tessera T1 boasts a very low latency up/down scaler that matches the source to the screen
  • No need for an external scaler which reduces overall cost and simplifies your system
  • Tessera T1 also offers region-of-interest clipping​



Technical Specifications

Physical (WxHxL)

Unboxed

  • 482.6mm (19”) x 44.5mm (1.75”) x 342.9mm (13.5”)

Weight

  • Unboxed: 3.1Kg (6.8lbs)
  • Boxed: 5.5Kg (12.1lbs)

Electrical

  • Switched autoranging power supply
  • 100 – 240V AC
  • 50Hz – 60Hz
  • 0.4 – 0.2A

DVI-D Input

  • One DVI-D input
  • Up to 1920 x 1080 at 60Hz
  • Non-standard resolution support for:
  • 1600 x 1200
  • 2880 x 720
  • 720 x 2880
  • 1080 x 1920
  • Support for RGB and YCbCr colour spaces
  • HDMI support with suitable adapter
  • No HDCP support

Outputs

  • One 1G Tessera output port capable of a nominal 525K pixels at 8 bits per colour, 60Hz frame rate

Genlock

  • Sync to source
  • Processors genlock from source right through to panel refresh
  • Frame rates from 23.98 to 60Hz

Latency

  • 3 frames end-to-end system latency (all features)
  • 2 frames end-to-end system latency in low-latency mode (restricted features)

Tessera Management Software

  • Local management using monitor, keyboard and mouse connected directly to the processor
  • Monitors from 1024×768 up to 1920×1080
  • DP++ monitor output supports HDMI, DVI and VGA using a suitable adapter

Tessera Remote

  • Available free for Windows PC and Mac OS
  • Remote management using Windows PC or Mac connected to processor via Ethernet network
  • One Gigabit Ethernet network port

Remote Control

  • DMX-512A on 5-pin XLR in and thru
  • Tessera Control application for multi-processor control via management network port
  • I/O
  • Two USB 2.0 ports on front
  • Two USB 2.0 ports on rear
  • One DisplayPort (DP++) monitor output

Front Panel

  • Seven status LEDs
  • Power LED

Warranty

  • Two years

Certifications

  • CE, ETL/cETL
